The VIA Video Intercom System is a multimedia access control system for multi-unit apartment buildings. Comprising a high-resolution 10” touch screen with a 5MP FHD camera, this high-performance IP56-rated device delivers a host of advanced security functions, including live video monitoring, screenshot capture, and two-way audio calls. Whenever a visitor arrives, residents and security staff can tap into the camera feed from their access control system or dedicated Apple® iPhone® or Android smartphone app to verify who they are before allowing entry into the building. For more details, download your copy of the VIA Intelligent Building Solutions brochure here.
Video Monitoring
Video Monitoring
With its rich video capture and display capabilities, the VIA Video Intercom System enables residents and security staff to identify a visitor as soon as their face appears on the screen. The system’s wide field of view and enhanced night vision capabilities provide a clear view of the immediate area at any time of day or night.
Two-Way Audio
Two-Way Audio
Support for two-way audio means that residents and security personnel can talk with each other or the visitor in real-time when they have questions over the visitor’s identity.

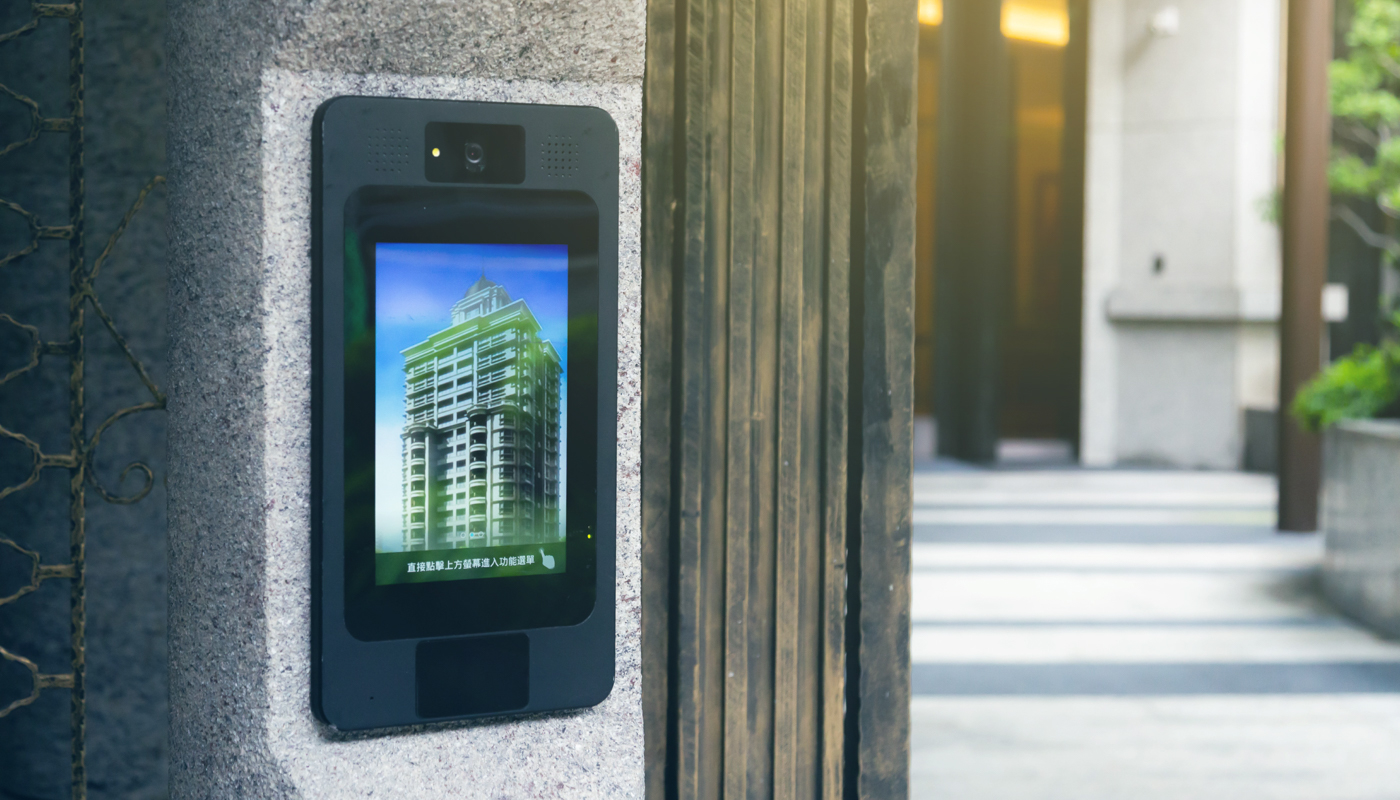

Reliable Operation
Reliable Operation
With it durable IP56-rated design, the VIA Video Intercom System delivers reliable operation in all weather conditions. Automatic OTA (Over the Air) updates ensure the smooth integration of the latest applications and services into the system.
Specifications
VIA Video Intercom System (SHP-B01)
Features
- Two-way audio calls between security and resident/visitor
- Apple® iPhone® and Android smartphone app
- Live video monitoring and screenshot capture
- Automatic OTA updates
Display
- 10” capacitive touch screen supporting 1280 x 800 resolution
- Automatic screen off
Camera
- 5MP camera supporting FHD 1080P video resolution (1920×1080)
- 120° Field of View
- White LED light for enhanced night vision
Audio
- Microphone and speaker
- Two-way voice
Access Control Card Reader
- Door Open
Connectivity
- 10/100 Ethernet (RJ45)
Power
- 12V DC 5A power connector
Operating Temperature Range
- 0°C ~ 45°C
Operating Humidity
- 10% – 90% (RH)
Materials
- System: aluminum alloy
Dimensions
- 400mm x 210mm x 44mm (W x D x H)
Installation
- Wall mount box
- 380mm x 180mm x 45mm (W x D x H)
Get In Touch
Elevate your building’s security and communication with the state-of-the-art VIA Video Intercom System. Contact us for more information!
